Requirements and Standards for Stainless Steel Pipes in Natural Gas Pipelines
Stainless steel pipes for natural gas pipelines must meet strict requirements to ensure safe, reliable, and long-term gas transmission. These standards cover material composition, mechanical properties, corrosion resistance, dimensional accuracy, and welding performance. Choosing the right stainless steel grade is essential for handling high pressure, corrosive gases, and challenging environments.

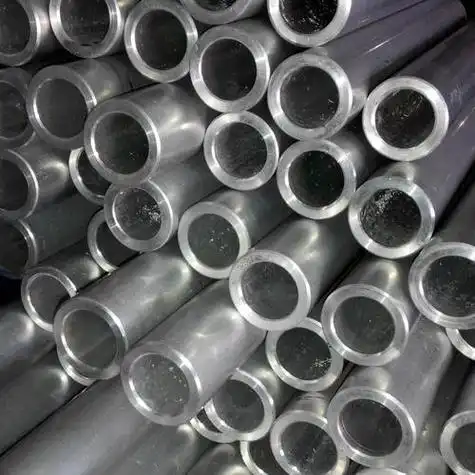

Seamless stainless steel pipes used in high-pressure natural gas pipelines
Key Performance Requirements
1. Material and Composition
The alloy composition must provide excellent corrosion resistance and mechanical strength. Common stainless steel grades include:
- Austenitic stainless steels: 304 (18–20% Cr, 8–10.5% Ni) and 316 (2–3% Mo, higher resistance to chloride and sour gas environments).
- Ferritic stainless steels: 430 (cost-effective but lower corrosion resistance, used in low-pressure pipelines).
Carbon content must be strictly controlled to prevent intergranular corrosion, while harmful impurities such as sulfur and phosphorus are limited.
2. Mechanical Properties
Pipes must withstand high-pressure natural gas transmission, with typical requirements:
- Tensile strength ≥ 515 MPa
- Yield strength ≥ 205 MPa
- Elongation ≥ 30% (ensuring ductility)
- Impact toughness: critical for low-temperature service, down to -196°C.
3. Corrosion Resistance
Pipes must resist different forms of corrosion:
- Intergranular corrosion: tested according to GB/T 4334 or ASTM A262.
- Pitting and crevice corrosion: particularly in high-sulfur or humid gas environments.
- Stress corrosion cracking (SCC): evaluated under high-pressure sour gas conditions (H₂S presence).
4. Dimensional Accuracy
- Wall thickness tolerance: ±10% (for seamless pipes).
- Roundness and straightness must ensure safe installation.
- Smooth inner surface reduces gas flow resistance and prevents impurity deposits.
5. Welding and Joining
- Weld seam quality: must pass NDT methods such as X-ray or ultrasonic testing.
- Welding processes: GTAW (TIG welding) preferred to minimize heat-affected zone issues.
- Connections: flanges, threads, or socket welds must guarantee leak-free performance.
6. Pressure and Sealing Tests
- Hydrostatic testing: at 1.5 times the design pressure, with no leakage.
- Gas tightness testing: helium leak detection or pressure decay method before operation.
Major Standards and Specifications
Chinese Standards
- GB/T 14976-2012: Seamless stainless steel pipes for fluid transport.
- GB/T 12771-2021: Welded stainless steel pipes for low- to medium-pressure service.
- GB/T 30065-2013: Seamless stainless steel pipes for sour natural gas service.
International Standards
- ASTM A312: Austenitic seamless and welded pipes (304, 316 grades).
- ASTM A269: General-purpose stainless steel tubes.
- API 5L (supplemental): Covers stainless steel in certain high-pressure applications.
- EN 10216-5: Seamless stainless steel tubes for pressure service.
- JIS G3459: Stainless steel pipes for pipelines in Japan.
Design and Construction Codes
- GB 50251-2015: Code for design of gas transmission pipelines.
- GB 50235-2010: Code for construction of industrial piping.
- API RP 571: Guidelines for corrosion prevention in sour service.
Special Considerations for Harsh Environments
- Buried pipelines: require additional protection such as 3PE coatings or cathodic protection.
- Extreme temperatures: materials must retain toughness at cryogenic levels and oxidation resistance at high temperatures.
- High-pressure pipelines: ≥10 MPa service requires stronger alloys (e.g., 316L) and thicker walls.
Stainless steel pipes for natural gas pipelines must combine strength, corrosion resistance, and sealing integrity while meeting international standards. Ganyeah Group provides durable pipeline solutions designed for complex natural gas transmission environments.
