How to Select the Right Stainless Steel Pipe Material for Natural Gas Pipelines

Selecting the right stainless steel pipe material for natural gas pipeline is a critical decision that directly affects safety, performance, and overall cost efficiency. At Ganyeah Group, we provide stainless steel pipeline solutions tailored to natural gas projects worldwide, helping clients balance material performance and lifecycle costs. The choice should be based on three key dimensions: medium characteristics (corrosiveness), operating conditions (pressure and temperature), and installation environment. Ultimately, the guiding principle is simple—material performance must match service conditions, while costs should align with project requirements.mance must match service conditions, while costs should align with project requirements.

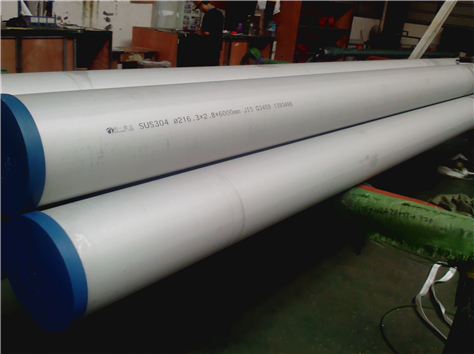

Ganyeah Group stainless steel pipe solutions for energy projects

1. Step One: Analyze the Corrosive Factors of Natural Gas

The corrosiveness of the transported gas determines the required corrosion resistance of the stainless steel pipe:

• Hydrogen sulfide (H₂S) concentration
  • Low sulfur (≤50 ppm): Suitable for 304/304L stainless steel pipes in dry conditions.
  • Medium sulfur (50–1000 ppm): Requires better pitting and stress corrosion cracking (SCC) resistance; 316L stainless steel pipe is the benchmark choice.
  • High sulfur (>1000 ppm): Demands superior resistance; 2205 duplex stainless steel or 2507 super duplex stainless steel is recommended.
• Moisture content
  • Dry gas (dew point ≤ -15°C): Low corrosion risk; 304 stainless steel is sufficient.
  • Wet gas (dew point > -10°C with free water): Even at low sulfur levels, 316L stainless steel pipe is preferred to prevent pitting.
• CO₂ and chloride ions (Cl⁻)
  • Low chloride (≤50 ppm): 304 is acceptable.
  • Moderate chloride (50–500 ppm): 316L is recommended.
  • High chloride (>500 ppm): Requires duplex 2205 or 904L super austenitic stainless steel.

2. Step Two: Match Operating Conditions (Pressure and Temperature)

The mechanical properties of stainless steel must fit the pressure and temperature requirements of the pipeline:

• Pressure rating
  • Low pressure (≤6 MPa): 304/316L pipes with standard wall thickness are sufficient.
  • Medium to high pressure (6–16 MPa):
    • Low-corrosion environments: 304L with increased wall thickness.
    • Higher corrosion risk: 316L offers balanced strength and corrosion resistance.
  • High pressure (>16 MPa): Duplex stainless steel (2205) provides double the yield strength of 316L, allowing for thinner walls and reduced installation costs.
• Temperature conditions
  • Cryogenic (≤ -20°C, e.g., LNG transport at -162°C): Austenitic stainless steels such as 304L and 316L are suitable due to their excellent toughness at low temperatures.
  • High temperature (>80°C): 316L stainless steel offers superior resistance to oxidation compared to 304.

3. Step Three: Consider the Installation Environment

External conditions can accelerate corrosion or complicate installation:

Buried pipelines

• Dry, low-chloride soils: 304L with protective coatings.
• Moist, corrosive soils: 316L combined with coatings and cathodic protection.
• Extreme environments (coastal saline soils): Duplex 2205 reduces coating damage risk.

Above-ground pipelines

• Dry inland regions: 304 stainless steel is cost-effective.
• Humid or coastal areas: 316L is preferred for better atmospheric corrosion resistance.

Indoor or station piping

• 304L and 316L are ideal due to good weldability and clean surface appearance.
• Duplex stainless steels may require stricter welding procedures and are less economical for this application.

4. Step Four: Balance Cost Efficiency with Service Life

Stainless steel materials vary significantly in cost (304 ≈ 1.0, 316L ≈ 1.5, 2205 ≈ 2.5, 904L ≈ 5). The decision should be made on a lifecycle cost basis, not just the initial purchase price:

• Short-term or low-risk use: 304 is the most economical.
• Medium-risk, long-term use: 316L provides the best balance between cost and durability.
• High-risk or extreme environments: Duplex 2205 or 904L ensures long-term reliability and prevents costly failures.

5. Step Five: Verify Welding Feasibility and Standards Compliance

Weldability

• 304L and 316L: Excellent weldability with standard GTAW/TIG welding.
• Duplex stainless steels: Require controlled heat input and certified welders.
• Ferritic stainless steels: Limited use due to risk of brittleness after welding.

Standards compliance

Stainless steel pipe material for natural gas pipelines must meet international codes (such as ASME, ASTM, and ISO) and undergo hydrostatic testing and non-destructive testing to ensure safety.

Conclusion: A Step-by-Step Selection Process

Choosing the right stainless steel pipe material for natural gas pipelines requires a systematic evaluation:

• Analyze the medium: H₂S, CO₂, and chloride levels.
• Check operating conditions: Pressure and temperature requirements.
• Evaluate installation environment: Buried, above-ground, or indoor pipelines.
• Balance lifecycle cost: Procurement vs. long-term maintenance.
• Verify feasibility: Welding capability and compliance with standards.

By aligning material performance with operating conditions, project owners can avoid under-design failures and over-design costs, achieving both safety and cost efficiency in natural gas pipeline projects.
