Understanding Stainless Steel Tube Grades: BA, EP, AP, and MP
When choosing stainless steel tubes, the surface finish, corrosion resistance, and cleanliness determine whether the product is suitable for semiconductor plants, pharmaceutical facilities, food production, or general industrial use. Stainless steel tubes are classified into four main categories: BA (Bright Annealed), EP (Electro Polished), AP (Annealed & Pickled), and MP (Mechanical Polished). Each stainless steel tube grade has unique production methods, surface quality, and cost implications. This article explains the definition, features, and applications of stainless steel tube grades, helping you select the most suitable stainless steel pipe for your project.
BA grade stainless steel tubes for semiconductor pipelines
BA Stainless Steel Tube (Bright Annealed)
Definition:
BA stainless steel tubes are produced through bright annealing in a vacuum or protective atmosphere such as hydrogen or nitrogen. The process eliminates cold-working stress and results in a bright, oxide-free surface.
Key Processes:
- Cold rolling for dimensional accuracy and smooth finish.
- Bright annealing at 1050–1100°C with slow cooling to prevent oxidation.
- Non-destructive testing & cleaning, including endoscopic inspection, hydrostatic testing, and surface roughness measurement (Ra ≤ 0.4 μm).
Features:
- High surface quality with smooth inner and shiny outer finish.
- Excellent dimensional accuracy with uniform wall thickness.
- Reliable corrosion resistance thanks to a stable passive film.
- Good mechanical performance for bending, flaring, and further fabrication.
Applications:
- Semiconductor industry: high-purity gases (N₂, Ar), ultrapure water (UPW).
- Food and beverage: main process pipelines in contact with milk, juice, or pharmaceutical liquids.
- Laboratory and analysis: carrier gas pipelines.
- Medical devices: equipment frames, housings, and fluid pipelines not in direct contact with blood.
EP grade stainless steel tube with ultra smooth polished surface
EP Stainless Steel Tube (Electro Polished)
Definition:
EP tubes are BA tubes enhanced by electrochemical polishing, which removes micro-defects and delivers an ultra-smooth surface (Ra ≤ 0.2 μm).
Key Processes:
- Bright annealing and inspection.
- Chemical polishing followed by electro polishing in a phosphoric-sulfuric acid solution.
- Final cleaning with high-purity water and nitrogen packaging to avoid contamination.
Features:
- Ultra-low surface roughness that reduces residue and bacterial growth.
- Excellent corrosion resistance due to a uniform chromium oxide film.
- High cleanliness with no micro-cracks or pits.
- Higher cost due to complex processing requirements.
Applications:
- Semiconductor manufacturing: ultrapure gases, UPW return loops.
- Biopharmaceuticals: sterile process systems such as WFI (Water for Injection), pure steam, bioreactors.
- Implantable medical devices: stents, orthopedic implants, surgical instruments.
- High-purity chemical transport: photoresists and electronic-grade solvents.

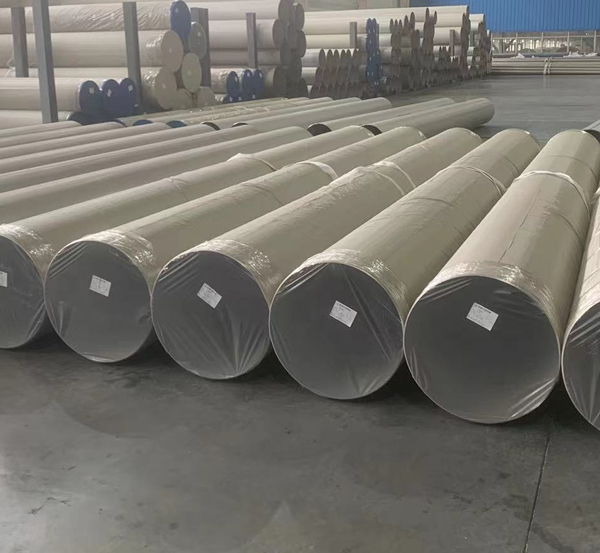

AP grade stainless steel tubes for petrochemical pipelines
AP Stainless Steel Tube (Annealed & Pickled)
Definition:
AP tubes are produced by annealing and acid pickling, which removes scale and restores corrosion resistance.
Key Processes:
- Solution heat treatment to relieve stress.
- Pickling in nitric-hydrofluoric acid to remove oxide scale.
- Neutralization and rinsing to ensure clean surfaces.
Features:
- High surface cleanliness with uniform silver-white finish.
- Moderate corrosion resistance (Ra ~0.8–1.6 μm).
- Lower cost, suitable for less demanding environments.
Applications:
- Petrochemical pipelines for corrosive fluids or industrial water.
- Food industry: external piping, storage tanks, mixers.
- Medical equipment housings and non-implant tools.
- Architectural applications such as railings and curtain walls.

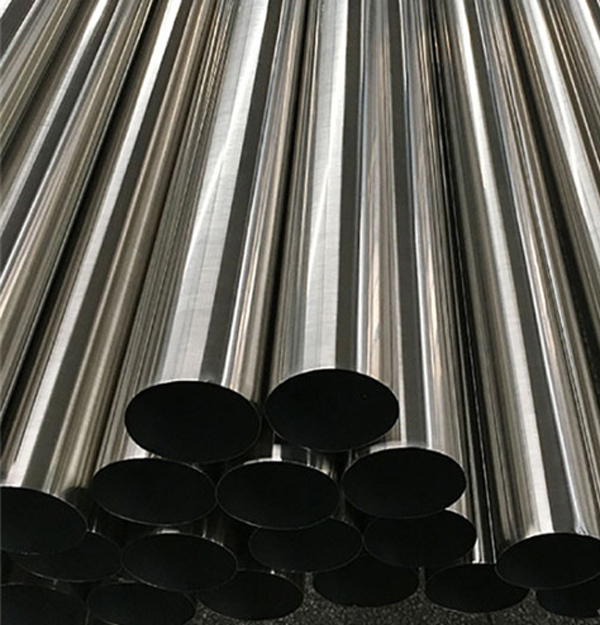

MP grade stainless steel tubes for architectural handrails
MP Stainless Steel Tube (Mechanical Polished)
Definition:
MP tubes are polished mechanically using abrasive wheels and polishing compounds.
Key Processes:
- Rough polishing to remove defects.
- Fine polishing to achieve Ra ~0.4–0.8 μm.
- Cleaning and inspection for surface consistency.
Features:
- Medium surface finish, suitable for moderate hygiene requirements.
- Lower corrosion resistance compared to BA and EP (requires passivation).
- Cost-effective option for less critical applications.
Applications:
- Construction: handrails, railings, decorative structures.
- Machinery: equipment casings, mechanical components.
- Food and chemical industry: general pipelines for non-corrosive fluids.
- Water treatment: municipal and industrial cooling water systems.
Stainless Steel Tube Grade Comparison
| Grade | Surface Roughness (Ra) | Corrosion Resistance | Cost | Typical Applications |
|---|---|---|---|---|
| BA | ≤0.4 μm | High | Medium-High | Semiconductor gases, food & beverage pipelines |
| EP | ≤0.2 μm | Extremely High | High | Biopharma sterile systems, implant devices |
| AP | 0.8–1.6 μm | Medium | Low | Petrochemical pipelines, construction |
| MP | 0.4–0.8 μm | Medium-Low | Low-Medium | Architecture, machinery, general fluids |
Selection Guide
- For ultra-high purity or sterile applications → Choose EP stainless steel tube.
- For high cleanliness and reliable corrosion resistance → Choose BA stainless steel tube.
- For cost-efficient industrial use → Choose AP stainless steel tube.
- For decorative or moderate requirements → Choose MP stainless steel tube.
Why Choose Ganyeah Stainless Steel Tubes?
At Ganyeah, we specialize in producing all four stainless steel tube grades—BA, EP, AP, and MP—to meet diverse industry needs. Our products are manufactured with strict quality control, ensuring:
- Consistent surface quality for demanding industries.
- Superior corrosion resistance with advanced finishing processes.
- Customizable dimensions and grades to match client requirements.
- Global supply capability with proven reliability in semiconductor, pharmaceutical, food, petrochemical, and construction projects.
Partner with us to find the right stainless steel tube solution for your project.
