Schedule 40 Steel Pipe: Dimensions, Applications, and Buying Guide
In industrial, commercial, and residential piping systems, choosing the right pipe is critical for safety, compatibility, and long-term performance. Among the many specifications available, Schedule 40 Steel Pipe remains one of the most widely used options worldwide. Its balance of wall thickness, strength, and cost efficiency makes it ideal for applications ranging from plumbing and oil transfer to structural projects and fire protection.
Understanding Schedule 40 pipe dimensions, pressure ratings, and differences from other schedules such as Schedule 80 helps engineers, contractors, and buyers make the right decision for their projects.

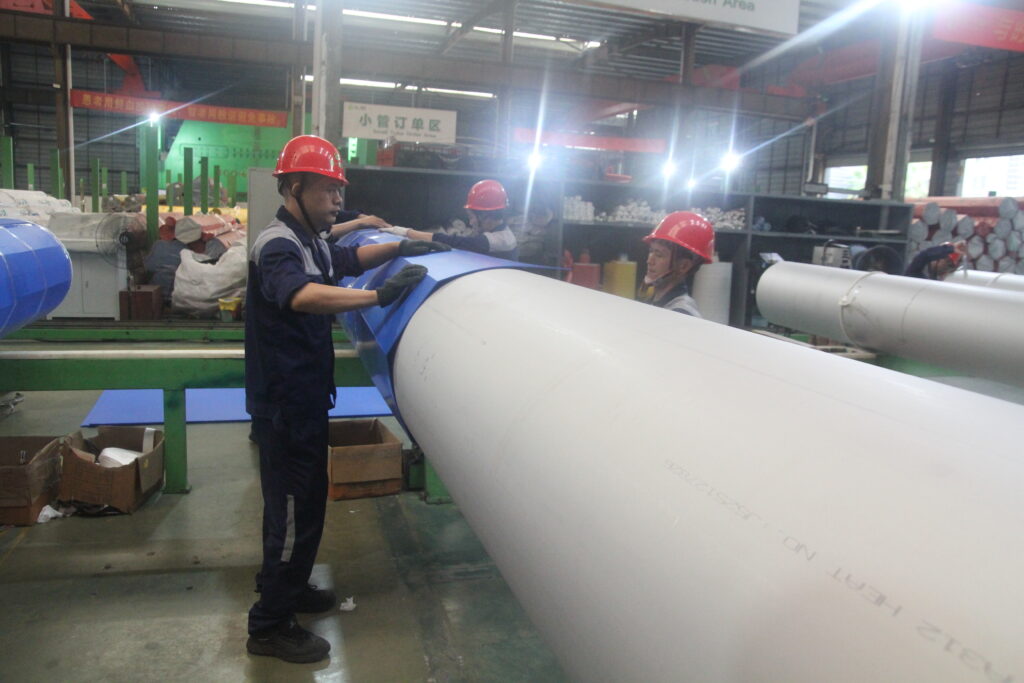

Schedule 40 stainless steel pipes manufactured by Ganyeah Group
What Does “Schedule 40” Mean?
A pipe schedule is an industry-standard designation that relates a pipe’s wall thickness to its nominal pipe size (NPS) and pressure-bearing capacity.
- Outer Diameter (OD): Constant for a given NPS.
- Wall Thickness (WT): Defined by the schedule number.
- Inside Diameter (ID): Varies depending on wall thickness.
For example:
- A 1-inch NPS Schedule 40 pipe has an OD of 1.315 inches and a wall thickness of 0.133 inches.
- A 4-inch NPS Schedule 40 pipe has an OD of 4.500 inches and a wall thickness of 0.237 inches.
This standardization ensures compatibility across fittings and suppliers, simplifying installation and maintenance.
Schedule 40 vs. Schedule 80 Pipe
| Feature | Schedule 40 Pipe | Schedule 80 Pipe |
|---|---|---|
| Wall Thickness | Thinner, lighter | Thicker, heavier |
| Pressure Rating | Suitable for low to medium pressure | Higher pressure resistance |
| Cost | More cost-effective | More expensive |
| Applications | Plumbing, structural, fire systems | Industrial, high-pressure pipelines |
| Availability | Widely available, easy to source | Less common, more specialized |
Typical Applications of Schedule 40 Steel Pipe
- Plumbing and Water Systems – Handles residential and commercial water distribution efficiently.
- Oil and Gas Pipelines – Reliable for low to medium-pressure transfer lines.
- Structural and Fabrication – Commonly used for handrails, supports, scaffolding, and fencing.
- Fire Protection Systems – Meets strength requirements for sprinkler lines and safety compliance.
- HVAC and Heating Systems – Circulates fluids and gases in heating and ventilation systems.
Case: Reliable Supply for Chemical Industry
In 2021, Ganyeah Group delivered over 200 tons of Schedule 40 stainless steel pipe to a chemical processing plant in Southeast Asia. The project required corrosion resistance under harsh chemical exposure while ensuring long-term reliability. By supplying ASTM A312-compliant pipes with full traceability, Ganyeah Group helped the client meet international standards while reducing maintenance costs and downtime.
Why Choose Schedule 40 Steel Pipe from Ganyeah Group?
- Certified Quality: Products manufactured to ASTM, ASME, and ISO standards.
- Competitive Pricing: Balance of strength and affordability compared to higher schedules.
- Global Supply: Successfully delivered to clients in Asia, the Middle East, Europe, and South America.
- On-Time Delivery: Robust supply chain ensures timely shipments for urgent projects.
Looking for a reliable supplier of Schedule 40 Steel Pipe?
Ganyeah Group offers certified products, competitive prices, and fast international delivery. Our expert team will guide you in selecting the right pipe dimensions and materials for your project.
📩 Contact us today for a detailed quote and technical consultation.
